DIN741 Malleable Wire Rope Clips

Products > Thimbles, Clips, Turnbuckles > DIN741 Malleable Wire Rope Clips

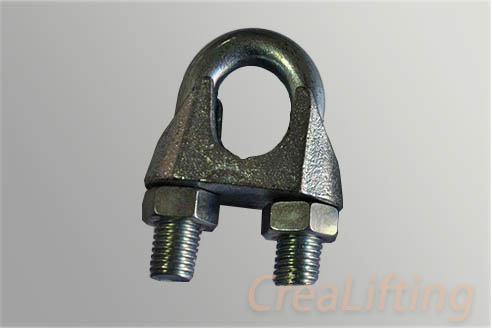

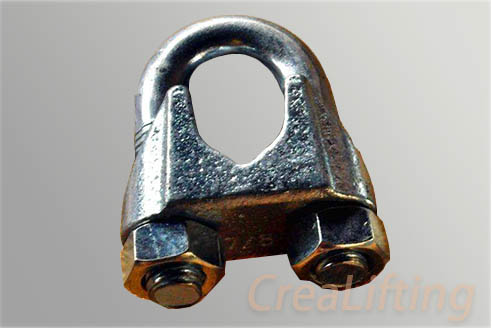

DIN741 Malleable Wire Rope Clips

Electric galvanized.
Size: 3-50

DIN741 Malleable Wire Rope Clips




Size

Dimension(inch)

Weight

(mm)

A

B

C

(kg/pc)

3

M4

16

9

0.01

5

M5

19

11

0.02

6.5

M5

23

13

0.02

8

M6

28

16

0.04

10

M8

35

19

0.07

11

M8

37

20

0.07

13

M10

46

24

0.13

14

M10

48

25

0.14

16

M12

52

29

0.21

19

M12

64

32

0.28

22

M14

72

37

0.40

26

M14

82

41

0.44

30

M16

95

48

0.66

34

M16

105

52

0.85

40

M16

125

58

1.04

45

M18

147

63

-

50

M20

152

72

-
