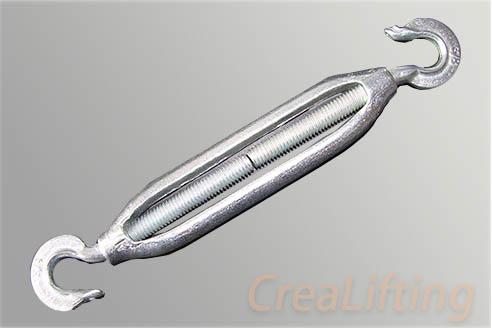

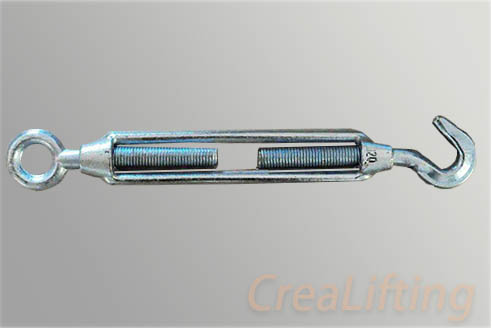

DIN1480 Turnbuckles

Electric galvanized.
Different type available: E/E, E/H, H/H, J/J
Size: M6--M48

DIN1480 Turnbuckles




Electric galvanized
Size from 6mm to 48mm

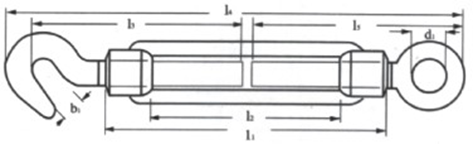

Thread

Body Length

L2

L3

b1

L4

d1

L5

Weight

(mm)

L1(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg/pc)

M6

110

80

85

8.5

80

9

172

0.095

M8

110

75

85

11

84

10

182

0.165

M10

125

85

112

13.5

105

14

213

0.029

M12

125

80

117

15.5

115

16

238

0.043

M14

140

90

122

18.5

122

18

263

0.062

M16

170

110

138

19

165

22

320

0.092

M20

200

130

170

20.5

167

24

367

1.63

M22

220

145

185

26

167

27

398

2.20

M24

255

170

205

26

205

27

447

3.00

M30

255

160

225

33

255

31

512

4.60

M36

295

180

255

44

276

43

568

7.68

M42

330

200

340

48

260

49

683

12.9

M48

355

195

360

58

300

58

755

21.0
