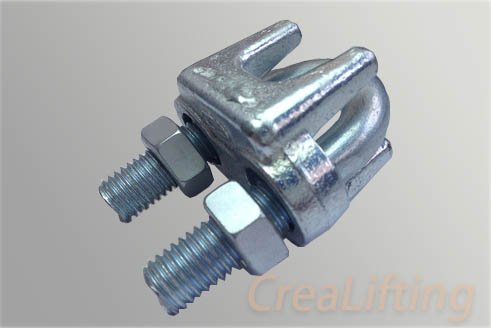

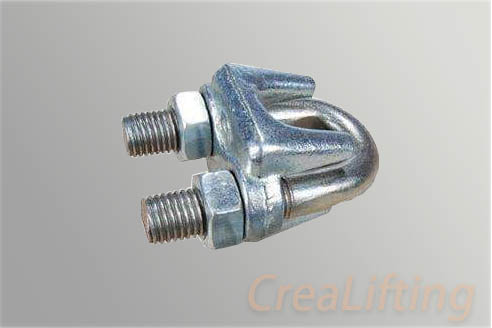

JIS Type Drop-forged Type Wire Rope Clips

Electric galvanized.
Size: 6-38

 JIS Type Drop Forged Wire Rope Clips (JIS-2809/1966)




Size

Dimension(mm)

Weight

(mm)

B

C

E

G1/2

Thread Dia.

H

L

S

(kg/pc)

6

6

29

24

14

6

5

35

20

0.047

8

6

36

31

18

8

6.5

40

20

0.080

10

7

45

35

22

10

8

50

28

0.150

12

8

51

39

26

12

10

60

35

0.250

14

9

53

45

28

14

10

65

40

0.290

16

10

60

48

32

14

11

75

45

0.350

18

11

62

53

34

18

11

80

50

0.450

20-22

12

78

62

44

20

15

100

60

0.960

24-25

13

86

68

48

22

16

110

65

1.250

26-28

14

94

75

54

22

18

120

70

1.700

30-32

15

98

79

58

27

18

130

75

1.900

33-38

16

120

93

70

30

22

150

85

3.400
