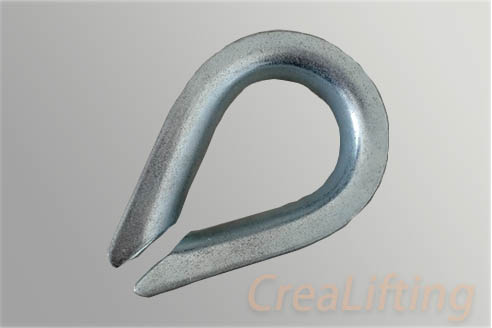

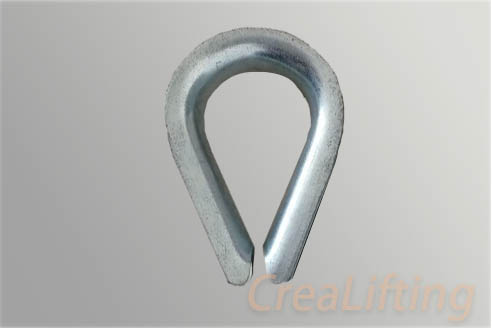

DIN6899B Wire Rope Thimbles

Products > Thimbles, Clips, Turnbuckles > DIN6899B Wire Rope Thimbles

DIN6899B Wire Rope Thimbles

Standard: DIN6899B
Surface: Electrical galvanized/hot dip galvanized
Size:2.5--40MM



DIN6899B Wire Rope Thimbles



Deep-welded Type.

Hot-dipped galvanized or zinc plated as a requirement.



Size

Dimension(mm)

Weight

(mm)

A

B

C

(kg/pc)

2.5

3

19

12

0.005

3.5

4

21

13

0.008

4

5

23

14

0.01

5

6

25

16

0.016

6

7

28

18

0.019

7

8

32

20

0.03

9

10

38

24

0.047

11

12

45

28

0.068

13

13

48

30

0.08

14

14

51

32

0.1

15

16

58

36

0.145

16

17

61

38

0.18

17

18

64

40

0.2

18

20

72

45

0.29

20

22

80

50

0.32

22

24

90

56

0.47

24

26

99

62

0.59

26

28

112

70

0.8

28

30

120

75

1.1

30

32

128

80

0.23

32

34

152

92

1.56

34

36

160

100

1.76

36

38

176

110

1.92

38

40

184

115

2.92

40

42

192

120

3.2


Note: the above products are of standard quality. Low quality for light-duty application and loading conditions is also available
