DIN580/582 Lifting Eye Bolt/Nut

Products > Thimbles, Clips, Turnbuckles > DIN580/582 Lifting Eye Bolt/Nut

DIN580/582 Lifting Eye Bolt/Nut

Standard: DIN580/582
Surface: Electrical galvanized/hot dip galvanized
Size:6-64MM



DIN580 Eye Screw




Size

WLL

Dimension(mm)

Weight

(mm)

(t)

A

B

(kg)

M6

0.07

16

13

0.05

M8

0.14

20

15

0.06

M10

0.23

25

18

0.11

M12

0.34

30

22

0.18

M14

0.49

35

28

0.27

M16

0.7

35

28

0.28

M20

1.2

40

30

0.45

M22

1.5

45

35

0.67

M24

1.8

50

38

0.87

M27

2.5

50

38

0.88

M30

3.6

60

45

0.66

M33

4.3

60

45

1.72

M36

5.1

70

55

2.65

M39

5.1

70

55

2.8

M42

7

80

65

4.03

M45

8

80

65

4.25

M48

8.6

90

70

6.38

M52

9.9

90

70

6.6

M56

11.5

100

80

8.8

M64

16

110

90

12.4

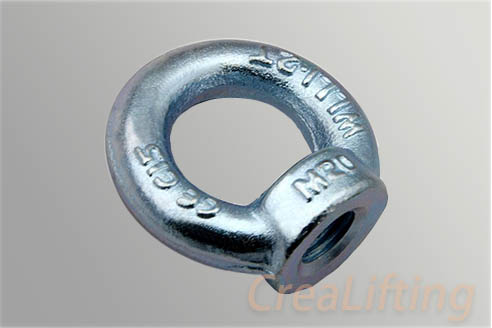

 DIN582 Ring Nut


Size

WLL

Dimension(mm)

Weight

(mm)

(t)

A

B

(kg)

M6

0.07

20

8.5

0.05

M8

0.14

20

8.5

0.05

M10

0.23

25

10

0.09

M12

0.34

30

11

0.16

M14

0.49

35

13

0.24

M16

0.7

35

13

0.24

M20

1.2

40

16

0.36

M22

1.5

45

18

0.58

M24

1.8

50

20

0.72

M27

2.5

50

20

0.7

M30

3.6

60

25

1.32

M33

4.3

60

25

1.3

M36

5.1

70

30

2.08

M39

5.1

70

30

2.02

M42

7

80

35

3.11

M45

8

80

35

3.04

M48

8.6

90

40

5.02

M52

9.9

90

40

4.95

M56

11.5

100

45

6.69

M64

16

110

50

6.69
