DIN3093 Aluminium ferrule

Products > Thimbles, Clips, Turnbuckles > DIN3093 Aluminium ferrule

1
2

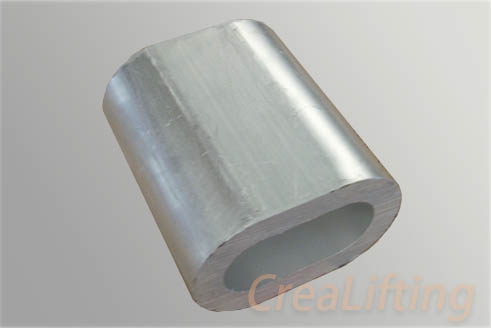

DIN3093 Aluminium ferrule

Standard: DIN3093
Size:6-56MM

Description

DIN3093 Aluminium ferrule parameter

Rope dia	Dimension(mm)				Standard	Net Weight
(mm)	A	B	C	D	(mm)	(g/pc)
1	3	4.3	1.3	2.6	5	0.11
1.5	3.5	5.3	1.8	3.6	6	0.21
2	4.5	6.9	2.4	4.8	7	0.24
2.5	5.1	8.1	3.0	6.0	9	0.50
3	6.1	9.6	3.5	7.0	11	0.84
3.5	7.0	11.0	4.0	8.0	13	1.32
4	7.9	12.4	4.5	9.0	14	1.81
4.5	8.9	14.0	5.1	10.2	16	2.61
5	9.8	15.4	5.6	11.2	18	3.57
6	11.6	18.2	6.6	13.2	21	5.86
6.5	12.6	19.8	7.2	14.4	23	7.85
7	13.6	21.4	7.8	15.6	25	9.53
8	15.4	24.2	8.8	17.6	28	13.7
9	17.3	27.2	9.9	19.8	32	19.8
10	19.1	30.0	10.9	21.8	35	26.4
11	21.1	33.2	12.1	24.2	39	35.8
12	23.0	36.2	13.2	26.4	42	45.8
13	25.0	39.2	14.2	28.4	46	59.7
14	26.0	42.2	15.3	30.6	49	73.5
16	30.9	48.4	17.5	35.0	56	111
18	34.8	54.4	19.6	39.2	63	159
20	38.5	60.2	21.7	43.4	70	217
22	42.7	67.0	24.3	48.6	77	292
24	46.4	72.8	26.4	52.8	84	376
26	50.3	78.8	28.5	57.0	91	481
28	54.5	85.4	31.0	62.0	98	603
30	58.1	91.2	33.0	66.2	105	735
32	62.0	97.5	35.2	70.4	112	897
34	66.2	104.0	37.8	75.6	119	1082
36	69.8	109.6	39.8	79.6	126	1275
38	73.5	115.4	41.9	83.8	133	1503
40	77.2	121.2	44.0	88.0	140	1734
42	81.2	127.4	46.2	92.4	147	2024
