G80 Eye Self-locking Hook with Safety Latch

Products > Riggings > G80 Eye Self-locking Hook with Safety Latch
    • 1
    • 2
    • 3

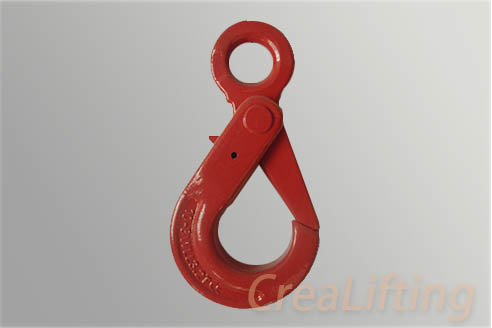

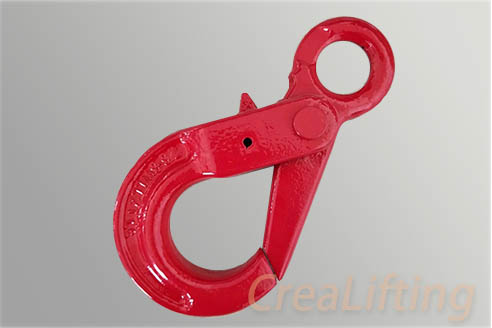

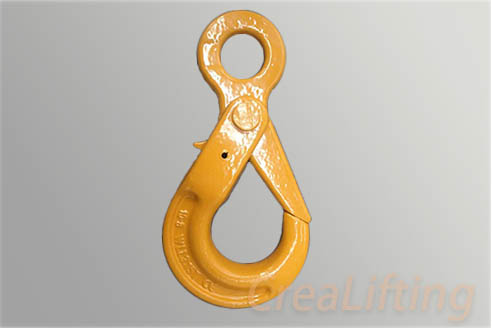

G80 Eye Self-locking Hook with Safety Latch

Material: Alloy steel
Breaking load: 4*WLL
Size: 6 - 32mm
Working load: 1.12 - 31.5T

Introductions for Use
Hooks should be inspected before use to ensure that:
• all markings are legible;
• hooks are free from nicks, gouges, and cracks;
• the latch is present;
• the latch is functional;
• a hook with the correct Working Load Limit has been selected with respect to the sling design i.e. the load to be lifted, the number of legs in the sling, the top angle, etc.

For lifting applications.
Standard: BS EN1677-3

Material: Alloy steel

Technology: forged, tempered & quenched

Breaking load: 4*WLL

Size: 6 - 32mm

Working load: 1.12 - 31.5T

Surface: Powder plasticized

Packaging: cartons+ pallets

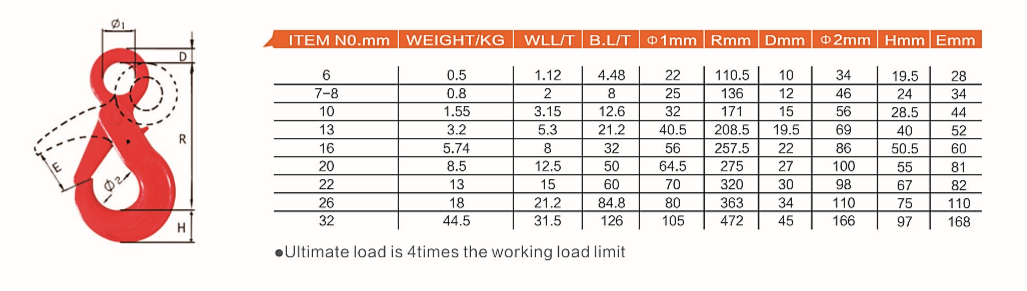

eye self-locking hook tz.png
It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading, etc. with a consequence of deformation and alteration of the material structure.

Inspection should take place at least every six months and even more frequently when the hooks are used in severe operating conditions.
