Products > Lifting Chain & Chain Sling > EN818-2 Black Lifting Chain

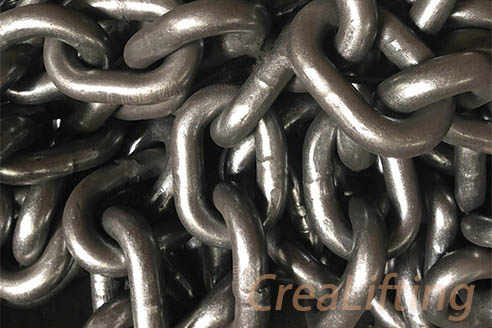

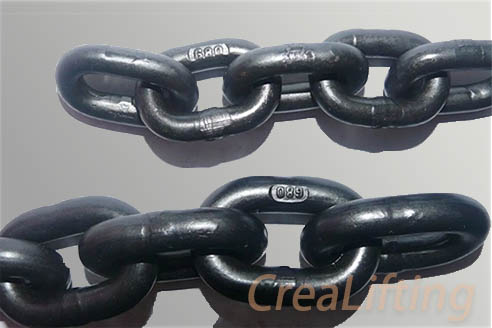

EN818-2 Black Lifting Chain

Grade 80 alloy lifting chain
■ Material: high quality alloy steel
■ Surface treatment: self-color, polishing, blackened, Painted, plastic coating, electric galvanized
■ Manufacture standard: ISO, DIN, BS, JIS, ASTM
■ Quality grade: G80,

■ Material: high quality alloy steel

■ Surface treatment: self-color, polishing, blackened, Painted, plastic coating, hot-dip galvanized, electric galvanized, etc.

■ Manufacture standard: ISO, DIN, BS, JIS, ASTM

■ Quality grade: G80
■ Suitable for operating temperature range -40° - 200°C.

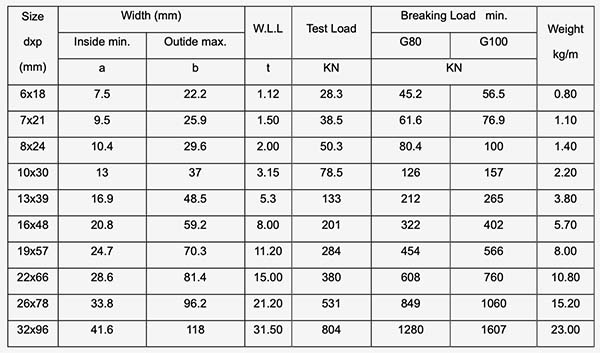

EN818-2 Black Lifting Chain (Grade 80) parameters

The ultimate elongation of uncoated chains (in their natural state) is not less than 25%.

The ultimate elongation of chains with surface treatment is not less than 20%.

The ratio of the carrying capacity to the trial load to the destructive load is 1:2, 5:4, respectively.

The value of the allowable carrying capacity of chains varies depending on the range of operating temperatures according to DIN 818-6.
