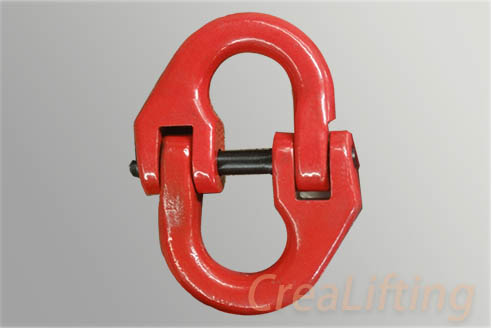

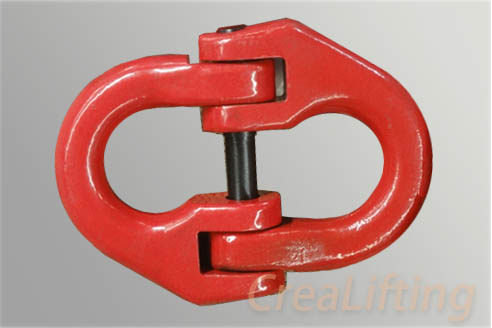

G80 European Type Connecting Link

Products > Riggings > G80 European Type Connecting Link

G80 European Type Connecting Link


■ Powder painted, other colour is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.


G80 European Type Connecting Link


 Yellow painted, another color is available as per request.
 The working load limits permanently are shown on the body.
 Max's proof load is 2.5 times the working load limited.
 Min. Breaking strength is 4 times of the W.L.L.


Size
W.L.L (t)
B.L (t)
Dimension (mm)
Weight (kg/pc)
ALKH
6-81.124.481558427.00.08
7/8-82.08.01879.562.58.50.146
10-83.1512.625936810.80.30
13-85.321.22911787150.70
16-883234.5148108.419.81.1
18-8104038154112211.84
18/20-812.55041169.5121.5261.8
22-81560
48193.5141.5263.2
26-821.284.8
57.5220158304.5
32-831.512667261205379


It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading, etc. with a consequence of deformation and alteration of the material structure.

Inspection should take place at least every six months and even more frequently when the hooks are used in severe operating conditions.
