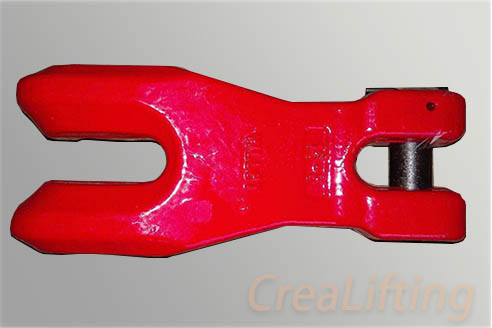

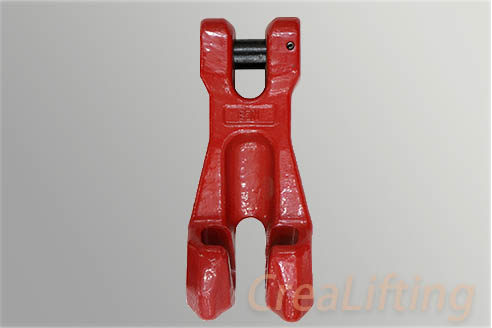

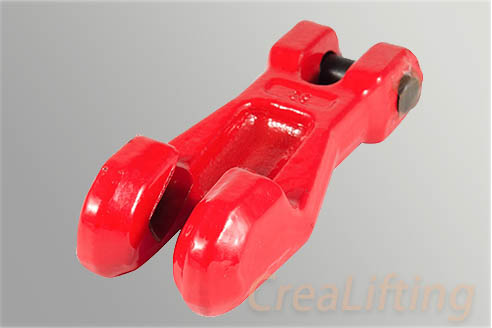

G80 Clevis Shortening Clutch


■ Powder painted, other colour is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.


G80 Clevis Shortening Clutch


 Powder painted, other colour is available as per request.
 Working load limit permanently shown on the body.
 Max proof load is 2.5 times of the working load limited.
 Min. Breaking strength is 4 times of the W.L.L.

Size

W.L.L (t)

B.L (t)

Dimension (mm)

Weight (kg/pc)

A

B

C

E

L

6-8

1.12

4.48

7.5

7.5

33

26

73.5

0.17

7/8-8

2.0

8.0

9.5

9.5

45

36

101

0.41

10-8

3.15

12.6

13

13

55

48

138

0.97

13-8

5.3

21.2

18

16

75

59

177

2.01

16-8

8

32

21

21

93

73

220

3.32

18/20-8

12.5

50

22

22

99

78

238

6.2

22-8

15

60

25.5

25.5

118

98

295

8.5


It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteratin of the material structure.

Inspection should take place at least every six months and even more frequently when the hooks are used in severe operating conditions.
