PA Mini Electric Hoist

Products > Manual Chain Hoist > PA Mini Electric Hoist

PA Mini Electric Hoist

The mini electric hoists are utilized in different lifting applications in various industries. Our wide range of products includes Mini Electric Hoist, Heavy-Duty Electric Hoist, Electric Winch. In addition, the items offered by us are introduced with settle suspension, outfitted trolley, and power trolley according to the particular necessities of our significant customers.


Features of Mini Electric Hoist:

1. Excellent control characteristics, the minimal setting force required, designed for one-hand operation.

2. Heat-treated suspension hook and load hook.

3. The stator and rotor are 1cm longer than other similar parts of the motor on the market, and more copper wires are used, make sure that the motor heats up more slowly, the power is greater and more secure.

4. Motor shell and gearbox are specially thickened.

5. Each motor must be strictly inspected, unqualified products must not be allowed to leave the factory.


ModelHookVoltage Power Capacity(kg) Lifting speed(m/min) Lifting height(m) Quantity (PCS) Packing size(cm) G.W /NW(kg)
(V)(W)
PA200 Single hook 110/220/230 510 100/200 10/5 12/6 2 38*32*25 24/22
 Double hook
PA250 Single hook 110/220/230 550 125/250 10/5
 2 38*32*25 25/23
 Double hook 12/6
PA300  Single hook 110/220/230 600 150/300  10/5 12/6 2 38*32*25 26/24
 Double hook

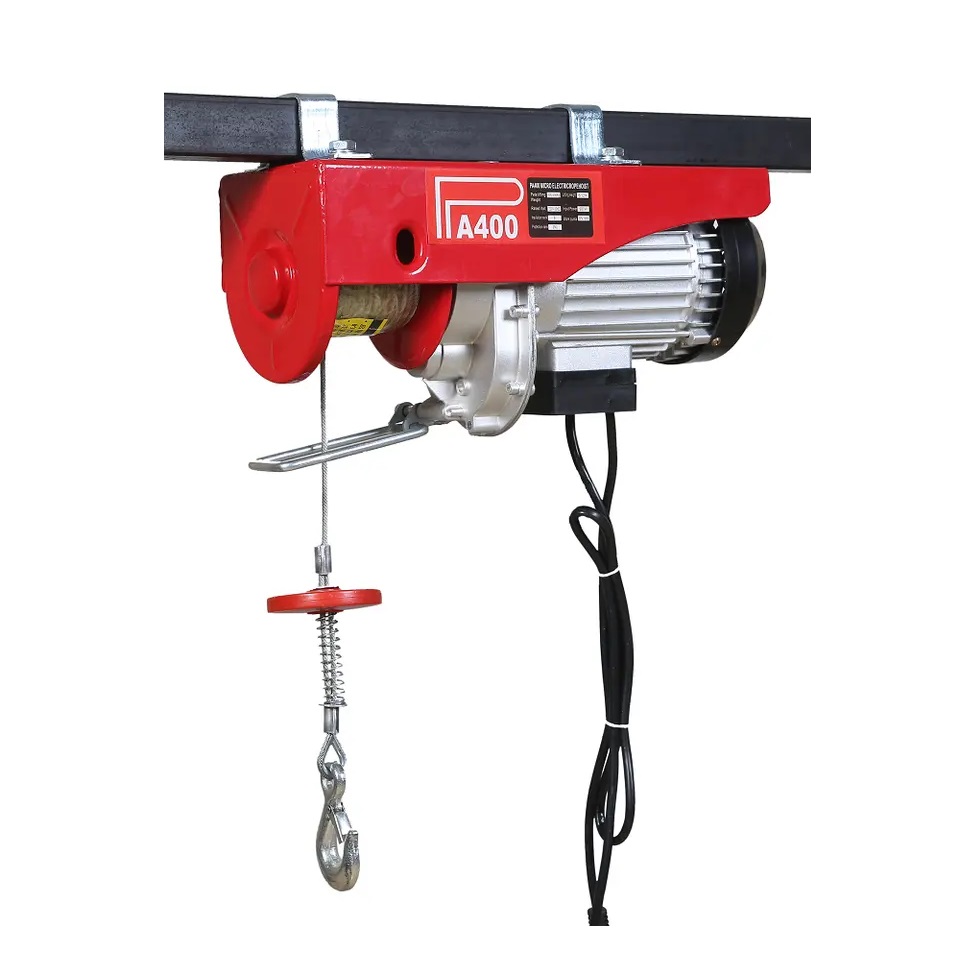

PA400 Single hook 110/220/230 980 200/400 10/5 12/6 2 45*33*27 34/33
 Double hook
PA500  Single hook 110/220/2301020  250/500 10/5 12/6 2 45*33*27 34/33
 Double hook
PA600 Single hook 110/220/2301200  300/600 10/5 12/6 2 45*33*27 35/34
 Double hook
PA800 Single hook 110/220/2301300  400/800 8/4 12/6 2 45*33*27 38/37
 Double hook
PA1000 Single hook 110/220/2301600  500/1000 8/4 12/6 1 54*25*32 33.7/32.7
 Double hook
PA1200 Single hook 110/220/2301800  600/1200 8/4 12/6 1 54*25*32 33.7/32.7
 Double hook
